信然国际标准柴油撬装空压机开始设计

信然柴油空压机国际化标准产品开始设计：专业、专注、高品质铸就信然空压机世界品牌之路。咨询：400-110-9566 网站：www.csxb.com

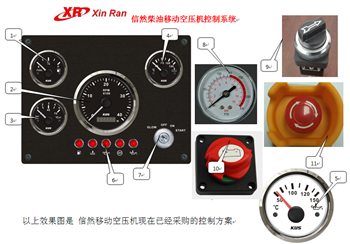

详细解释

1、信然柴油空压机燃油表：油位低于20%时开始报警，不会停机；fuel gauge—less than 20% starting to alarm but no stop

2、信然柴油空压机转速表：转速超过额定转速（2600r/min）的5%~10%时报警并停机，rpm meter- rate rpm 2600. If abnormal than 5-10% alarm and stop

运转时间：开机时间累积，通电时间不累积； running time meter

3、信然柴油空压机油压表：发动机机油油压低于0.8bar时报警并停机；oil gauge—less 0.8bar alarm and stop

4、信然柴油空压机水温表：水温高于98°C时报警并停机；water temperature meter-higher than 98degree alarm and stop

5、螺杆压缩机油温表：当压缩机油温高于:105°C时报警，发动机停机；screw oil temperature meter-if more than 105degree,then alarm and engine stop

6、信然柴油空压机报警灯组合：从左到右：燃油报警灯、水温高温报警灯、油压过低报警灯、超速报警灯、螺杆压缩机高温报警灯；alarm lights—from left to right: fuel alarm light, water high temperature alarm light, oil pressure alarm light, over speed alarm light, screw compressor high temperature alarm light.

7、信然柴油空压机启动开关：GLOW：启动前预热（选配），OFF:断电，ON：通电，START:启动；start switch (Glow is optional.)

8、信然柴油空压机压缩机排气压力表：显示单位bar和psi；air discharge pressure gauge

9、信然柴油空压机加载/卸载开关：气动控制加载/卸载；compressor loading/unloading switch

10、信然柴油空压机蓄电池开关：停机后手动断开；battery switch (manual off after stopped)

11、信然柴油空压机急停开关：紧急情况时使用；emergency stop

信然柴油空压机静音箱：所有门板可打开后均可卸下来，所有门锁钥匙可以通用； all doors are removable
